IO-Link Signal Beacons
IO-Link Signal Beacons

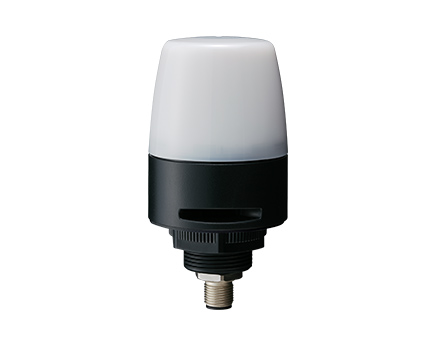

IO-Link signal beacon that use touch sensors and digital/analog inputs to visualize on-site informations.


  • Touch Sensor Type can be selected. Capacitive touch sensors are built into the top of the indicator lights. Touch the illuminated indicator light instead of the switch to send a signal to the host. It can be used by intuitive operations such as inputting the completion of work and calling the manager.

  • Abnormalities of IO-Link sensor etc. are notified by this equipment through the IO-Link master. As a result, it is possible to grasp the abnormality of the site at an early stage and to recover the abnormality. Reduction of stoppage loss and improvement of operation rate are realized.

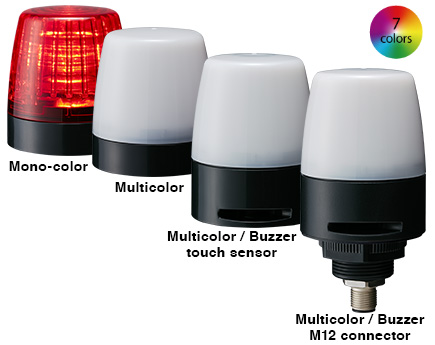

  • The display color can be selected from seven colors depending on the application. The use of easy-to-image colors such as "abnormal" and "working" makes it possible to determine and respond to situations more intuitively.

  • A digital/analog input function that can connect sensors that are not compatible with IO-Link. The indicator lights function as I/O hubs to make effective use of the equipment used on site. The indicator lights can be colored according to the threshold value of the value detected by the sensor, and the data can be sent to the IO-Link master.

  • Connection with the M12 connector completes power supply and control wiring. Complex wiring and expertise are not required.

  • Equipment connected to IO-Link master can be managed collectively by the master. This helps to list spare parts and maintain them.

  • Use a milky lens globe that is easy to distinguish between on and off. The alarm is given by a gentle light that is uniformly illuminated.

  • Click here for an IO-Link connection guide with OMRON Corporation "NX Series IO-Link Master Unit"
    (Please contact OMRON Corporation for inquiries regarding this document)

  • Specifications

    Rated voltage24V DC
    Compliance StandardsEMC Directive (EN 61000-6-4,EN 61000-6-2)
    RoHS Directive (EN 50581)
    UL 508, CSA-C22.2 No. 14
    FCC Part 15 SubpartB Class A
    KC (KN 61000-6-4, KN 61000-6-2)
    Protection classIP65 / NEMA TYPE 4X, 13 (with forward mounting)
