ไฟสัญญาณเตือนแบบชั้น LED ที่ตั้งโปรแกรมได้ผ่าน Ethernet ระบบ PoE
LA6-POE

ไฟสัญญาณเตือนแบบชั้น LED ขนาด 60 มม. แบบหลายสีและตั้งโปรแกรมได้ตัวแรก พร้อมระบบรองรับ Power over Ethernet (PoE)

  • ผลิตภัณฑ์เครือข่าย
  • อีเทอร์เน็ต(RJ-45)
  • IOดิจิทัล
  • เสาสัญญาณเตือน
  • Φ60
  • เปิดต่อเนื่อง
  • กระพริบ (แฟลช)
  • เตือน
  • 85dB หรือมากกว่า
  • ในร่ม
  • IP54
  • หลายสี
  • ไฟสัญญาณเตือนแบบชั้น LED ที่ตั้งโปรแกรมได้ผ่าน Ethernet ระบบ PoE LA6-POE
  • การเชื่อมต่ออีเทอร์เน็ตพร้อมการรองรับ PoE (Power over Ethernet) ช่วยให้สามารถติดตั้งสายเคเบิลแบบเดี่ยวได้
  • รองรับโพโทคอล Modbus TCP/IP และ HTTP ให้การทำงานที่ไร้รอยต่อกับโครงสร้างพื้นฐานที่มีอยู่ของคุณ
  • ส่วนต่อประสานผ่านเว็บในตัวทำให้สามารถปรับแต่งได้อย่างรวดเร็วและง่ายดาย
  • มี LED 21 สีที่ตั้งโปรแกรมได้ และการเตือนที่เลือกได้ถึง 11 แบบ ทำให้สามารถระบุสถานะได้อย่างชัดเจนไม่คลุมเคลือ
  • มีฟังก์ชันมิเรอร์สะท้อนสถานะด้วยภาพและเสียงของอุปกรณ์ลูกข่าย LA6-POE ถึง 8 ตัวในตำแหน่งที่ตั้งระยะไกล
  • แผงขั้วไฟฟ้าในตัวเป็นวิธีการติดตั้งสำรอง

Model Specifications

DIMENSIONS - 60mm Diameter
OPERATING VOLTAGES - 24V DC
- Power over Ethernet (PoE): 48V DC
FUNCTIONS Operational Method:
   - Signal wire control
   - Command control

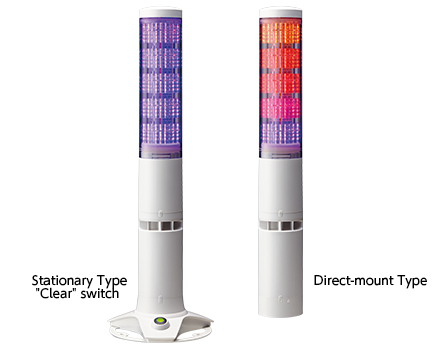

BODY STYLE TN: Direct Mount Type
SN: Stationary Type
BODY COLOR Off-white
STACKABLE TIERS - 5 Module
MODULE COLORS Display Color Variations:
   - Signal Tower mode: 9 colors
   - Smart Mode: 21 colors
AUDIBLE STYLE - 11 Alarm sounds available
CONFORMITY STANDARDS - EMC Directive
- RoHS Directive
- UL 508
- FCC
- KC
PROTECTION RATING - IP54 (IEC 60529)

(*) บริการดาวน์โหลดของข้อมูลในเว็บไซต์นี้ถือว่าได้ตกลงที่จะต่อไปนี้ ""

(*) บริการดาวน์โหลดของข้อมูลในเว็บไซต์นี้ถือว่าได้ตกลงที่จะต่อไปนี้ ""

LA6-5DTNWB-POE (Direct-mount type)  

LA6-5DTNWB-POE (Direct-mount type)  

ชิ้นส่วนอะไหล่

Category No. Part Name Part Number Required Qty Specification Approximate time of replacement

																Headcover: Off-white
B31310001-7F1 1

																USB Cover: Off-white
B22100071-7F1 1

																Waterproof Packing (2 pieces)
B25110042-F1 1

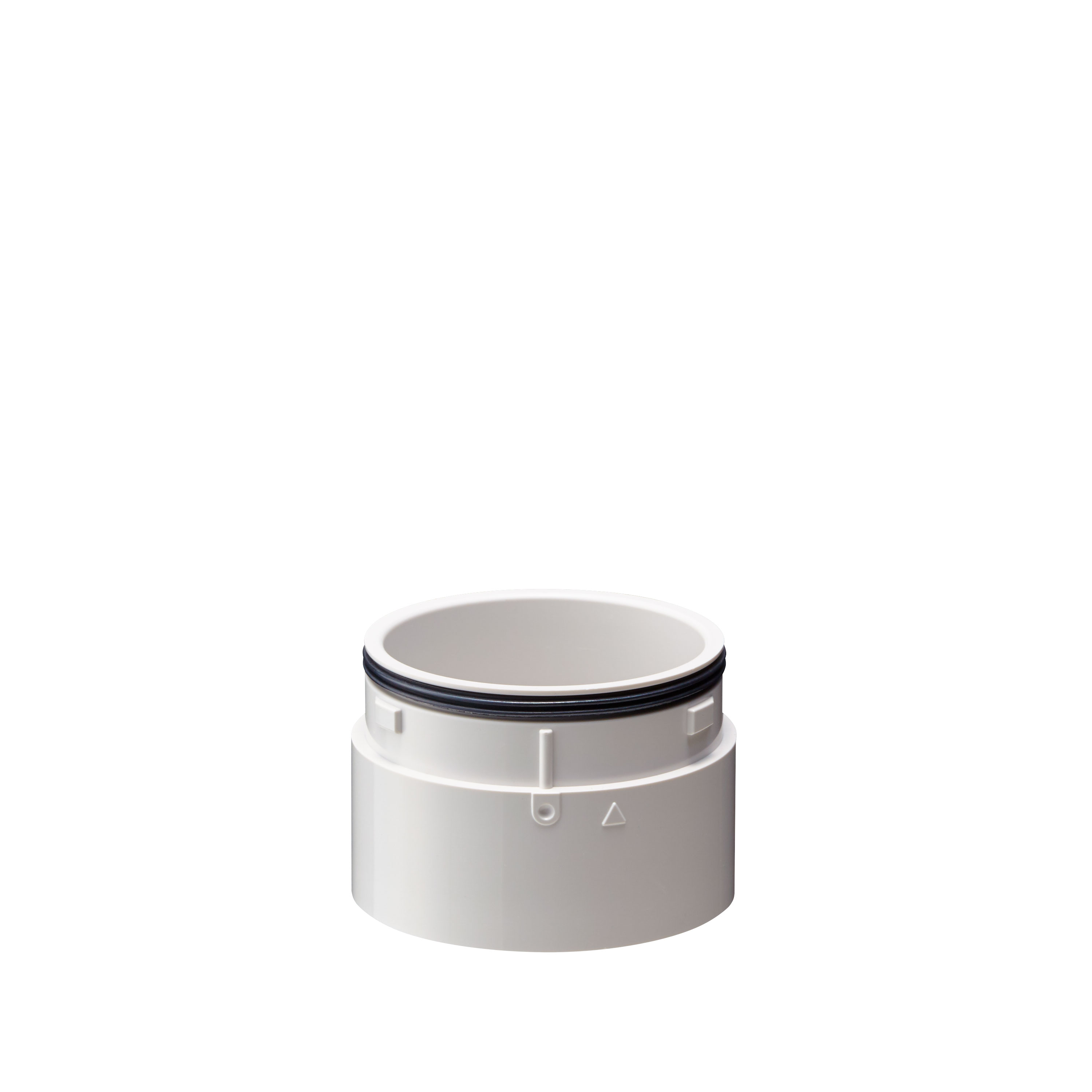

																LAN Bracket Assembly
B22100082-F1 1

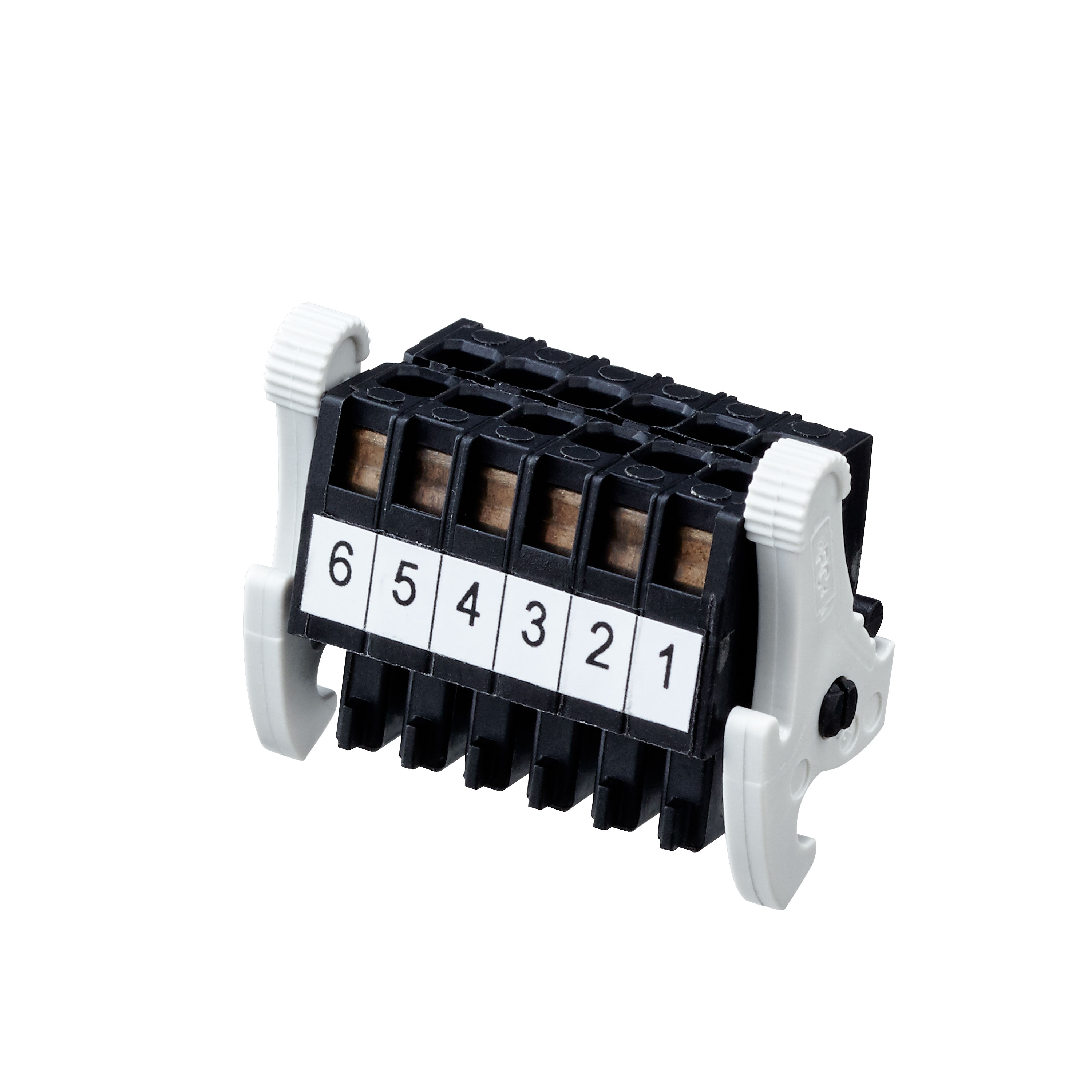

																Terminal Block Connector
Z69544323-F1 1
LA6-5DSNWB-POE (Stationary Type)  

LA6-5DSNWB-POE (Stationary Type)  

ชิ้นส่วนอะไหล่

Category No. Part Name Part Number Required Qty Specification Approximate time of replacement

																Headcover: Off-white
B31310001-7F1 1

																USB Cover: Off-white
B22100071-7F1 1

																Waterproof Packing (2 pieces)
B25110042-F1 1

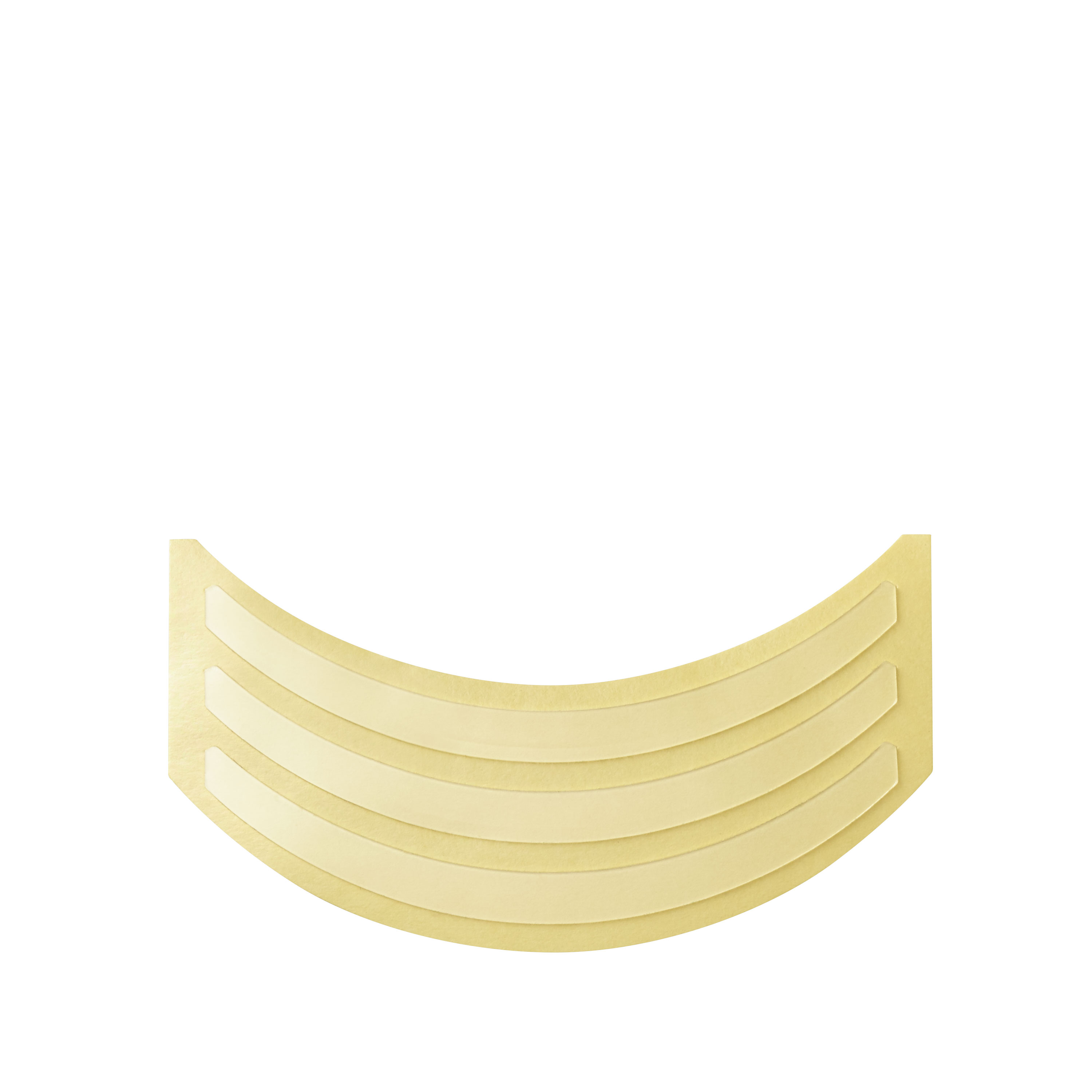

																Rubber Sheet (3 sheets)
B25210060-F1 3

																Terminal Block Connector
Z69544323-F1 1
