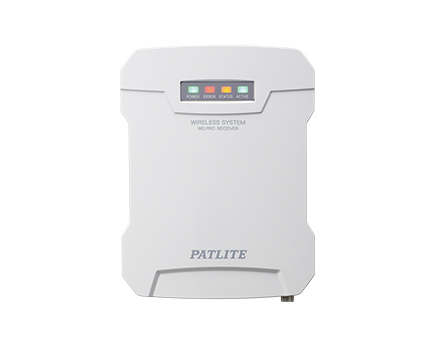

เครื่องรับระบบการดึงข้อมูลแบบไร้สาย WD PRO
WDR-LE-Z2-PRO

WDR-LE-Z2-PRO (ตัวรับสัญญาณ WD PRO) เป็นตัวรับสัญญาณที่เป็นส่วนหนึ่งของระบบการเก็บข้อมูลไร้สายของ PATLITE โดยระบบการเก็บข้อมูลไร้สายนี้สามารถรับสถานะแสง (และเสียงสัญญาณ) แบบไร้สายของเสาสัญญาณที่เชื่อมต่อแบบเรียลไทม์ซึ่งสามารถส่งออกไปยังไฟล์ CSV และวิเคราะห์เพื่อปรับปรุง OEE และปรับปรุงระบบการผลิตให้ดีขึ้น WD PRO Receiver รุ่นใหม่นี้เป็นรุ่นปรับปรุงของตัวรับสัญญาณรุ่นก่อนหน้าและรองรับการทำงานที่หลากหลายทำให้ง่ายต่อการสื่อสารระหว่างอุปกรณ์หลักและอุปกรณ์อื่น ๆที่ใช้ในงานของคุณ

  • ผลิตภัณฑ์ไร้สาย
  • ไร้สาย (Zigbee)
  • ในร่ม (แนวนอน ผนัง เพดาน)
  • IP20
  • เครื่องรับระบบการดึงข้อมูลแบบไร้สาย WD PRO WDR-LE-Z2-PRO
  • ประสิทธิภาพของ PoE
     เครื่องรับสัณญาณ WD PRO นี้สามารถเข้าถึงทั้งพลังงานและรับข้อมูลผ่านสายอีเธอร์เน็ตสายเดียวเพื่อลดพื้นที่การเดินสายและช่วยลดค่าใช้จ่ายลงด้วย
  • ตัวยึดสำหรับติดตั้ง
     WD PRO Receiver ตัวนี้จะมีตัวยึดติดกับพื้นผิว ซึ่งสิ่งนี้จะช่วยให้ง่ายต่อการติดตั้งและถอดออก รวมทั้งง่ายต่อการติดตั้งตามมุมต่างๆอีกด้วย.
  • การตรวจสอบผลการทำงานของเชื่อมต่อแบบไร้สาย
     มีความสามารถในการติดตามผลการทำงานของการเชื่อมต่อไร้สายระหว่างเครื่องรับและเครื่องส่งสัญญาณที่เชื่อมต่อ สามารถรวบรวมผลลัพธ์ของการทำงานได้มากถึง 72 ชั่วโมง ใช้เวลาในการดำเนินการประมาณ 10 นาที โดยผลการวิเคราะห์ที่ได้มี 5 ระดับ ซึ่งส่วนนี้จะช่วยให้ผู้ใช้งานสามารถปรับเปลี่ยนค่าไปตามสภาพแวดล้อมการติดตั้ง โดยข้อมูลที่ได้สามารถดูได้บนคอมพิวเตอร์ของคุณผ่านโปรแกรมที่ติดตั้งขึ้น
  • สถานะการแสดงผล Andon
     แสดงสถานะแบบเรียลไทม์ผ่านแสงและเสียงของเสาสัญญาณที่เชื่อมต่อทั้งหมด และจะแสดงผลบนหน้าจอคอมพิวเตอร์ของคุณผ่านโปรแกรมที่ติดตั้งขึ้นและสามารถทำได้พร้อมกันกับการรวบรวมข้อมูล CSV
  • ฟังก์ชั่นการทำงานร่วมกัน
     นอกจากจะมีระบบเครือข่าย SOCKET แบบง่ายๆแล้ว WD PRO Receiver ยังมีฟังก์ชั่นการทำงานร่วมกันโดยใช้ฐานข้อมูล Modbus / TCP และ SQL โดยระบบการทำงานนี้จะช่วยลดความซับซ้อนของการสื่อสารและการรวบรวมข้อมูลระหว่างอุปกรณ์ในเครือข่ายของคุณ



ข้อมูลจำเพาะ

สินค้า เครื่องรับระบบการเก็บข้อมูลแบบไร้สาย WD PRO

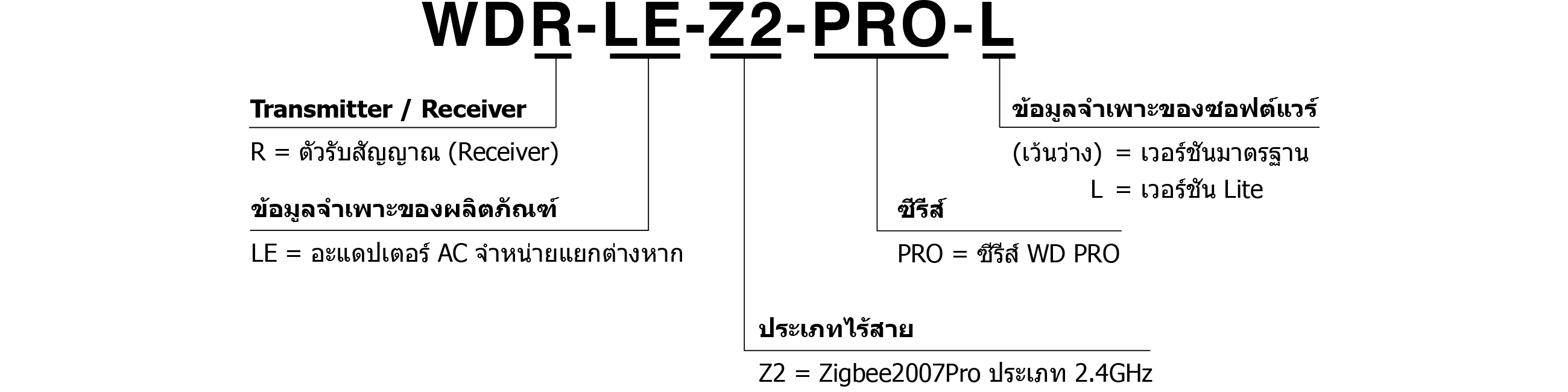

โมเดล WDR-LE-Z2-PRO
เครื่องรับระบบการเก็บข้อมูลแบบไร้สาย WD PRO〈รุ่น Lite〉
โมเดล WDR-LE-Z2-PRO-L
อุปกรณ์สำหรับจ่ายไฟ 24V DC / USB / PoE
วิธีการติดตั้ง การติดตั้งแนวนอน / การติดตั้งบนผนัง / การติดตั้งบนเพดาน
วิธีการสื่อสารผ่านเครือข่าย 10BASE-T / 100BASE-TX / 1000BASE-T
การเชื่อมต่อเครื่องส่งสัญญาณ สูงสุด 30 หน่วย
ระยะในการสื่อสาร แนวสายตาประมาณ 30 เมตร *1
การตั้งค่าที่อยู่ IP การตั้งค่าด้วยตนเอง / การกำหนดค่าอัตโนมัติ DHCP
อุณหภูมิโดยรอบการทำงาน -10℃~+50℃ (อุปกรณ์เสริม AC Adapter: 0℃~+40℃)
ระดับการป้องกัน IP20
การวิเคราะห์ผลการทำงานของเชื่อมต่อแบบไร้สาย การวิเคราะห์ตามเวลาจริง / การวินิจฉัยผลระยะยาว (1~72 ชั่วโมง)
การตั้งค่า Wireless Transmitter การตั้งค่าในตัวผ่านเบราว์เซอร์ / ซอฟต์แวร์ WDS-WIN01 ซอฟแวร์ WDS-WIN01
ระบบเครือข่าย ・ไฟล์ CSV * ใช้ WDS-WIN01・การสื่อสาร SOCKET (ร่วมกับ WDR)・การสื่อสาร SOCKET
 (ร่วมกับ WDR PRO)・การเชื่อมโยงฐานข้อมูล (MySQL)・การสื่อสาร Modbus / TCP WD-PRO
WD-PRO ・ไฟล์ CSV * ใช้ WDS-WIN01・ การสื่อสาร SOCKET
 (ร่วมกับ WDR)
Andon Display ×

※1 เนื่องจากคุณสมบัติของคลื่นวิทยุค่านี้เป็นเพียงค่าอ้างอิงเท่านั้น
