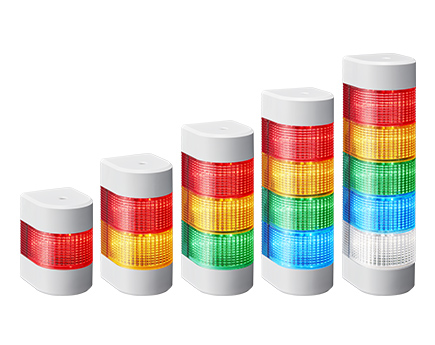

Signal Tower (80mm Profile)
WME-D
Signal Tower (80mm Profile)
Flush-mounted LED Signal Tower easily installs and is designed to withstand accidental impacts. Upgraded with ultra-bright LEDs, louder alarm and a more durable outer shell.

คุณลักษณะของผลิตภัณฑ์


  • FB type: Built-in audible alarm up to 93dB (at 1m).

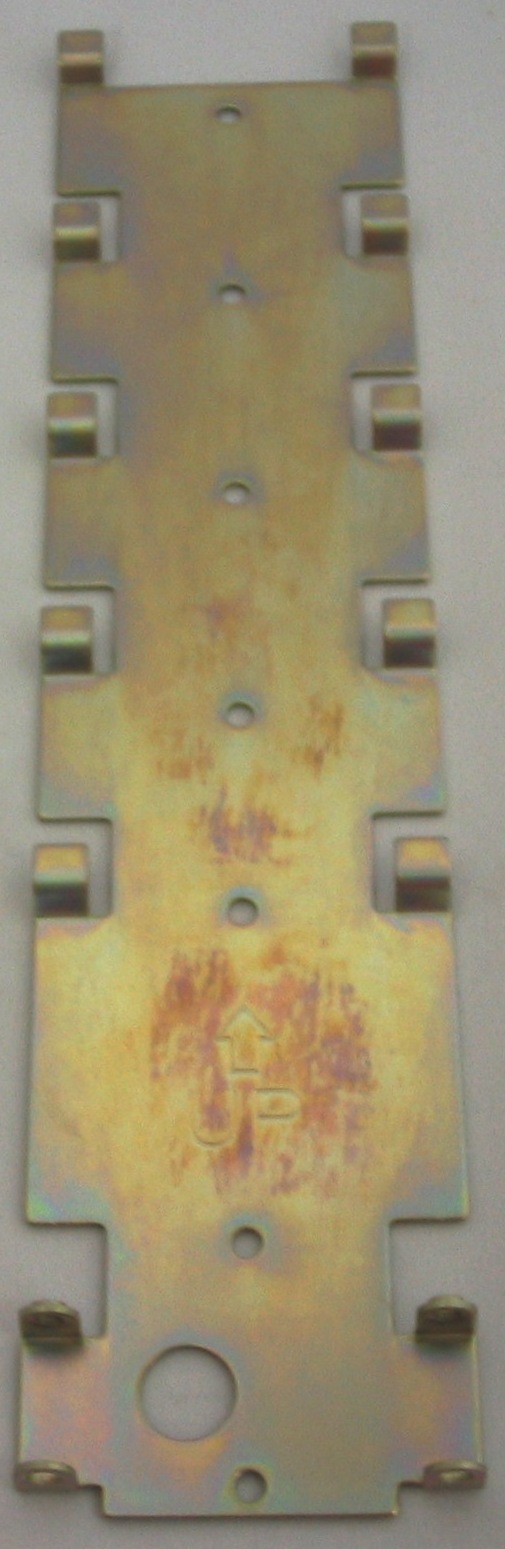

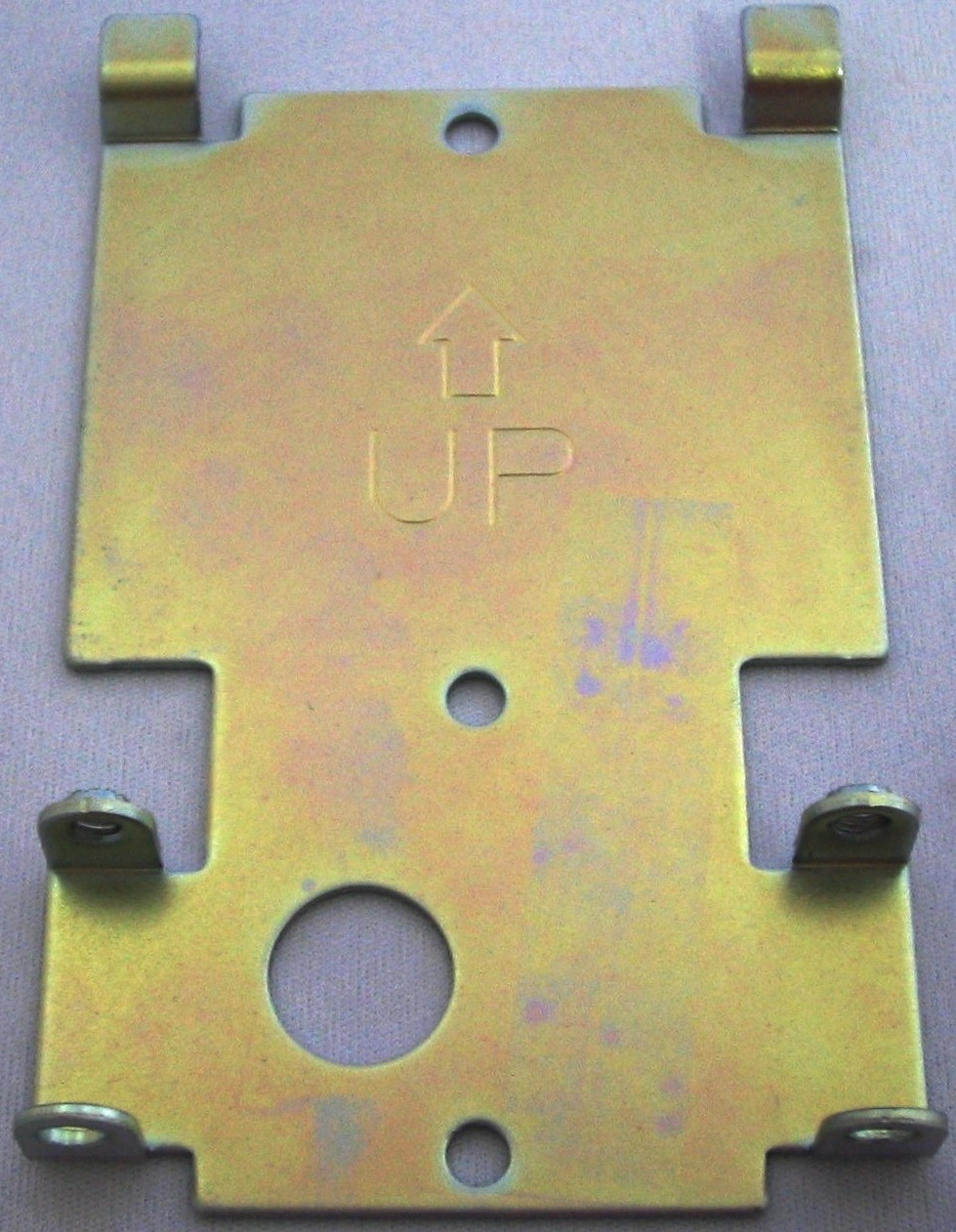

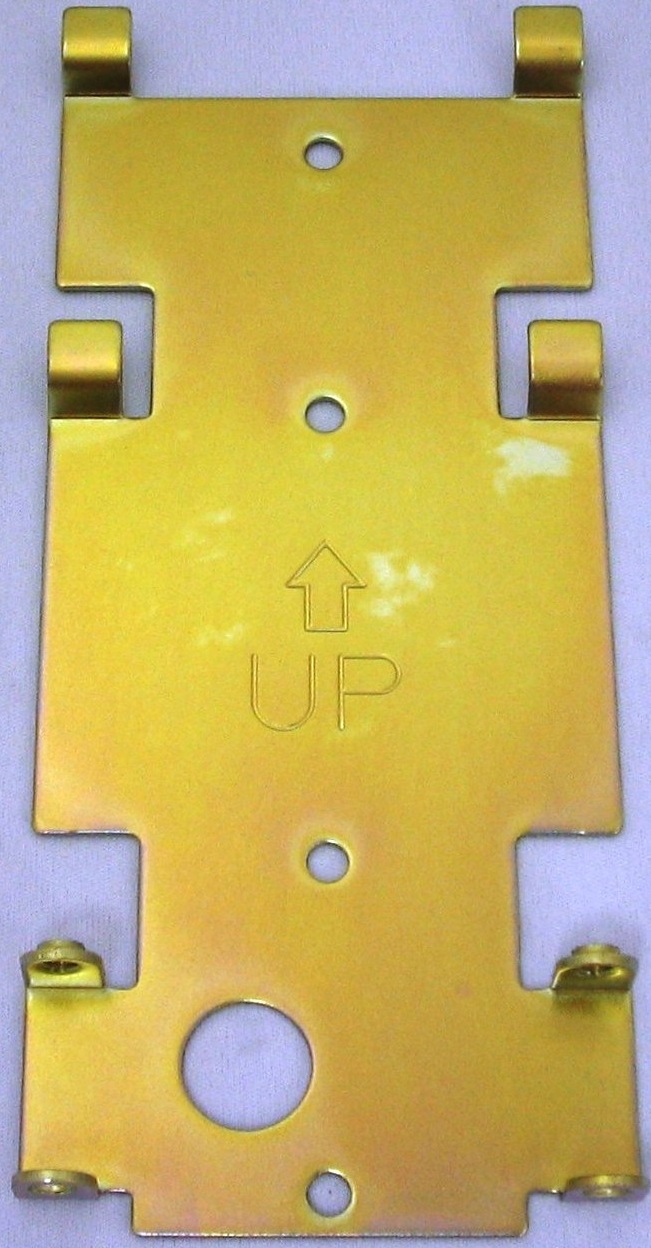

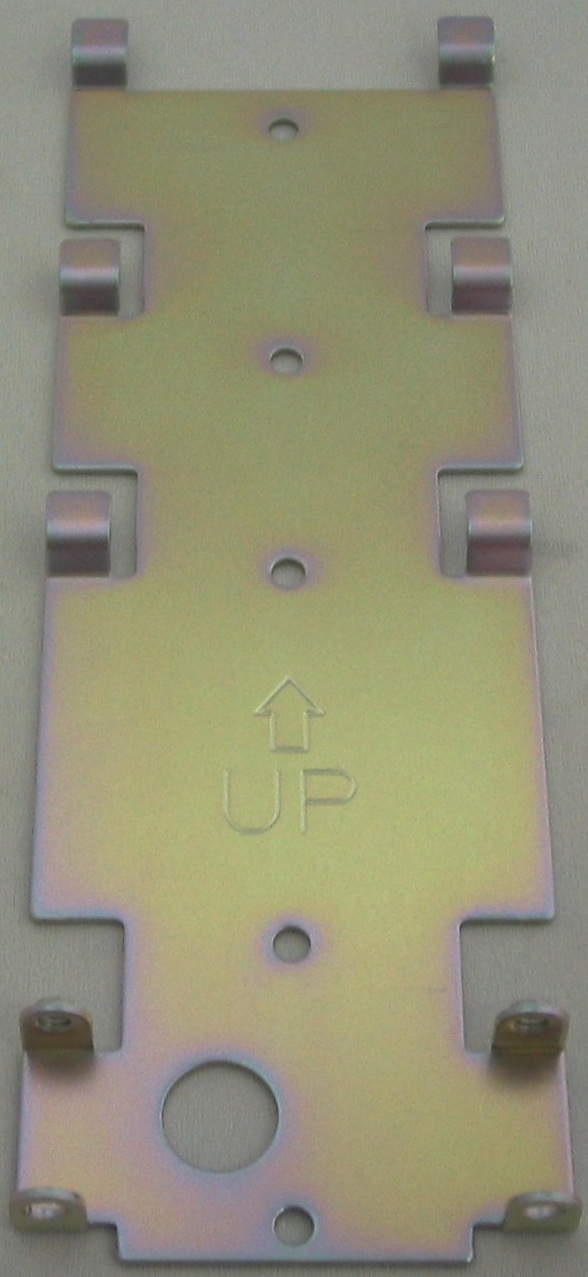

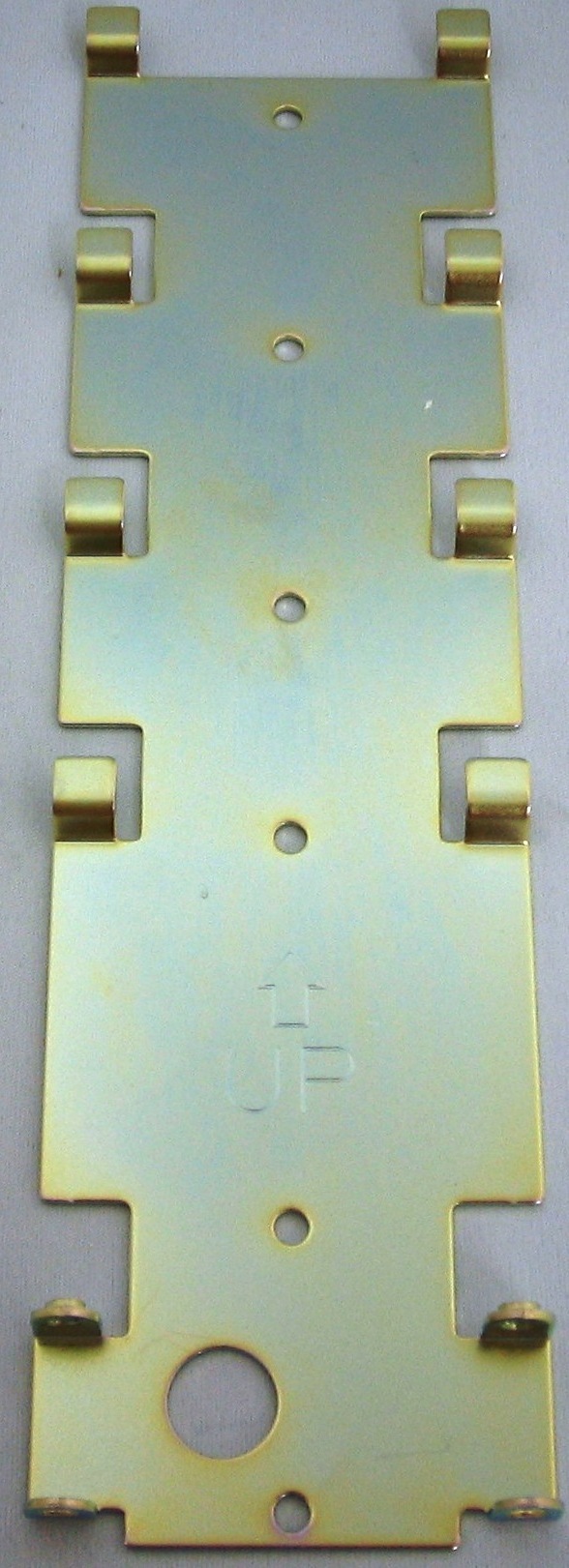

  • Installation: Easy vertical and horizontal installation with mounting bracket.

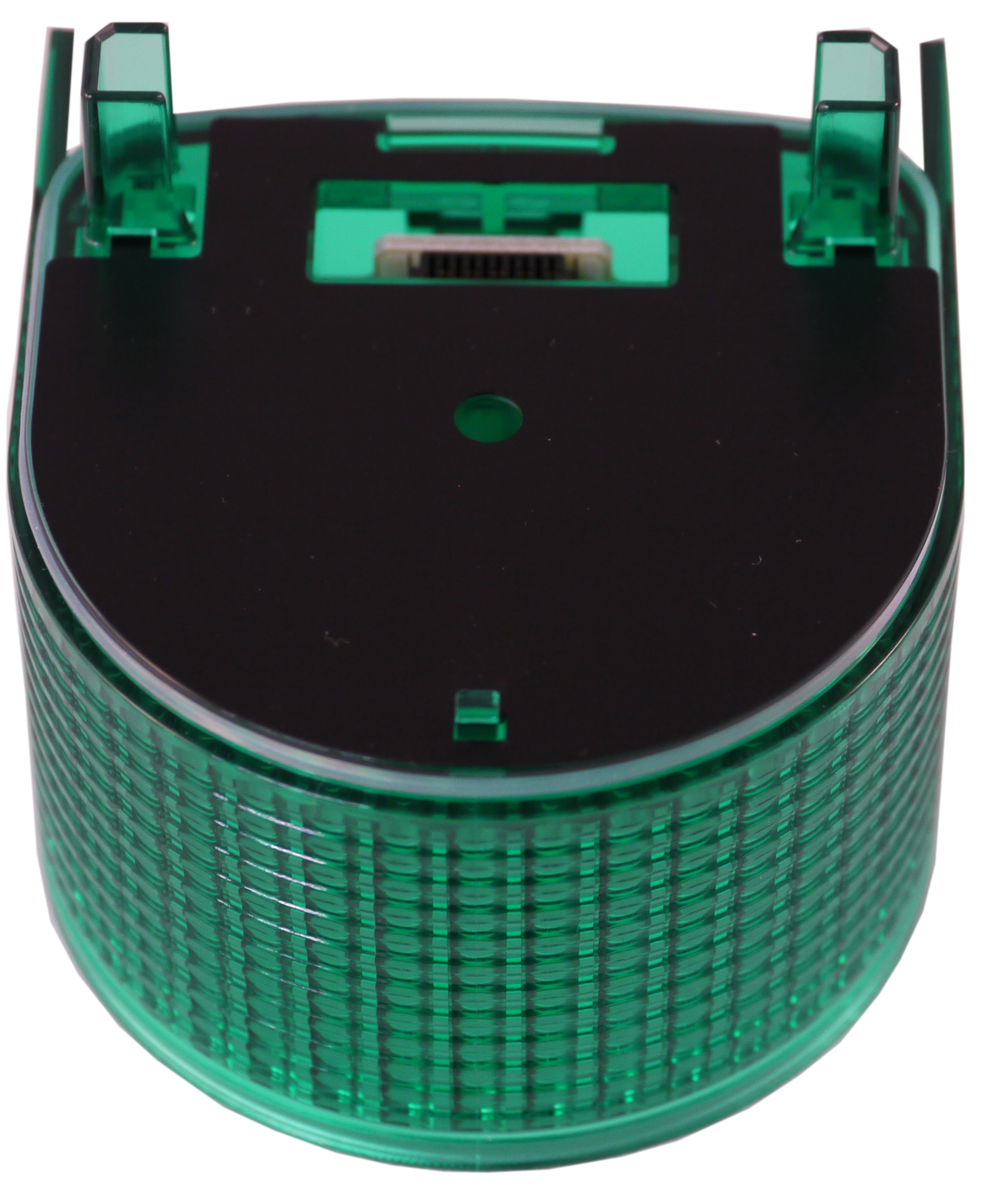

  • Interchangeable Modules: No re-wiring even after installation.

  • Mount option: Compatible with household switch box (JISC 8336 with 82.5m pitch).

  • Main body: Made of PC resin.

  • Lens: Superior impact and heat resistant polycarbonate resin for superior durability and light transmission.

  • NPN/PNP Compatible: 24V DC type ONLY.

  • LED Module Colors: Red, Amber, Green, Blue, White.



WME

คุณลักษณะของรุ่น

DIMENSIONS - 80mm profile
OPERATING VOLTAGES - 24V DC
- 100V-240V AC
FUNCTIONS - Continuous Only
- Continuous, Flashing, Alarms
MOUNTING - pre-assembled, pre-wired
- Lenses are interchangeable
BODY STYLE - Wall mount only: includes mounting bracket
BODY COLOR - Body: Off-White
STACKABLE TIERS - Available in 1, 2, 3, 4 or 5 tier versions
(Tiers cannot be added or subtracted after purchase.)
MODULE COLORS - Red
- Amber
- Green
- Blue
- White
AUDIBLE STYLE - Two selectable Alarms: Buzzer1 (Fast intermittent)
           : Buzzer2 (Slow intermittent)
- Sound Pressure Level: 93dB (at 1m)
CONFORMITY STANDARDS - CE Marking
- UL Component Recognition (US)
- c-UL Component Recognition (Canada)
- KC
PROTECTION RATINGS - IP-54 (Normal)
