120mm Audible Alarm

BK Series อุปกรณ์สัญญาณเสียงขนาดกระทัดรัด มีเสียงให้เลือกใช้งานถึง 32 เสียง เหมาะสำหรับพื้นที่ที่มีเสียงรบกวนสูง

  • การควบคุม I/O
  • □120
  • สัญญาณเตือนเสียง
  • โทน
  • ทำนอง
  • 95dB หรือมากกว่า
  • ในร่ม
  • กลางแจ้ง
  • IP54

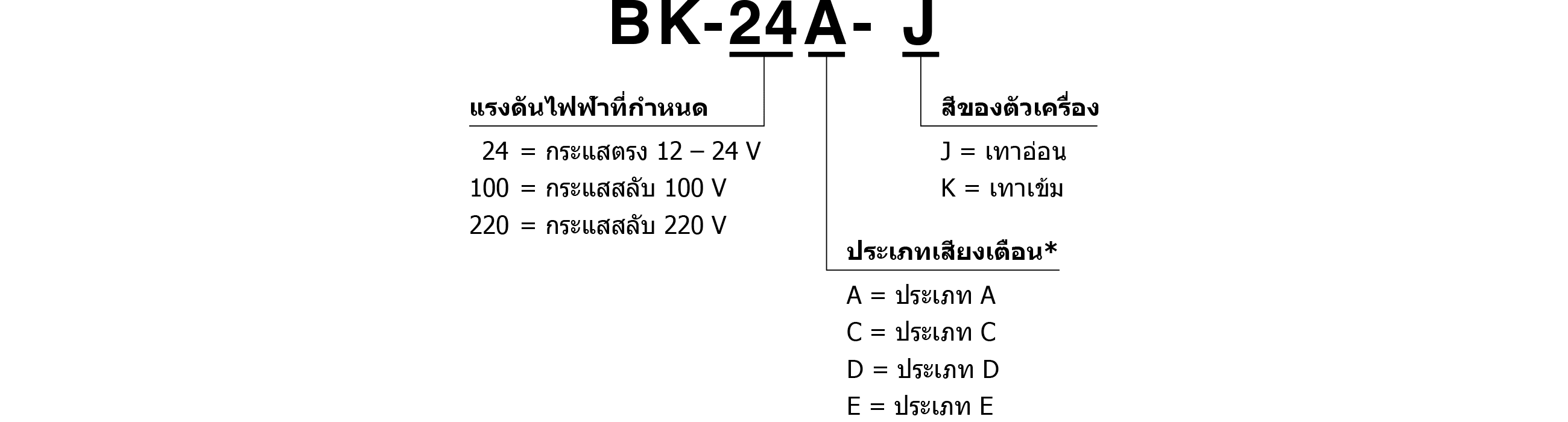

  • 120mm Audible Alarm BK
  • ระดับความดังเสียงสูงสุด 95 dB ที่ระยะ 1 เมตร เหมาะสำหรับโรงงานที่มีเสียงรบกวนสูง
  • มีเสียงให้เลือกใช้งานได้ 32 เสียงเหมาะสำหรับการใช้งานหลากหลายรูปแบบ
  • มี Rotary switch ด้านหน้าสำหรับปรับความดังและเลือก Group เสียงได้ง่ายหลังจากการติดตั้งแล้ว
  • เลือก Group เสียงได้ A ถึง H เพื่อเล่นเสียงตามที่ต้องการ (8 pre-recorded sound)
  • สามารถสร้าง Group เสียงใหม่เพื่อเลือกเสียงที่ต้องการจาก Group เสียงอื่นๆทั้ง 32 เสียง ด้วย SD card (Sold separately)
  • ได้รับมาตรฐาน RoHS
  • สามารถเลือก Selection switch จาก I ถึง O เพื่อทดสอบเสียง
  • สามารถเล่นเสียงได้ทั้งแบบ Bit Input (8 เสียง) หรือแบบ Binary Input (32 เสียง)

※ PATLITE Corporation ไม่ได้รับอนุญาติให้ใช้งานเสียงที่ได้รับลิขสิทธิ์ในรุ่น BK-A , BK-C และ BK-D ภายนอกพื้นที่ของประเทศญี่ปุ่น กรุณาติดต่อตัวแทนของ PATLITE เพื่อสอบถามข้อมูลเพิ่มเติม

(*) บริการดาวน์โหลดของข้อมูลในเว็บไซต์นี้ถือว่าได้ตกลงที่จะต่อไปนี้ ""

(*) บริการดาวน์โหลดของข้อมูลในเว็บไซต์นี้ถือว่าได้ตกลงที่จะต่อไปนี้ ""






Category No. Part Name Part Number Required Qty Specification Approximate time of replacement

																Slot Waterproof Cover
C25110015-F1 1



																Terminal Cover
C15140004-F1 2

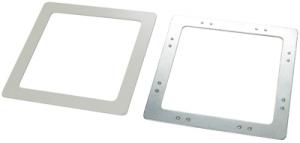

																Mounting Bracket (2 pieces)
V82100001-F1 2
