ไฟสัญญาณเตือนแบบชั้น LED ขนาด 60 มม.
LR6

ซีรี่ส์ไฟสัญญาณเตือนแบบชั้นรุ่นต่อไป มีไฟ LED ที่สว่างเป็นพิเศษ การออกแบบแบบแยกส่วน และมีหลากหลายตัวเลือกให้เลือกใช้งาน เพื่อรองรับการใช้งานที่ท้าทายที่สุด

  • การควบคุม I/O
  • เสาสัญญาณเตือน
  • Φ60
  • เปิดต่อเนื่อง
  • กระพริบ (แฟลช)
  • เตือน
  • 88dB
  • ในร่ม
  • IP65
  • IP54
  • แดง
  • เหลืองอำพัน
  • เขียว
  • น้ำเงิน
  • สีขาว

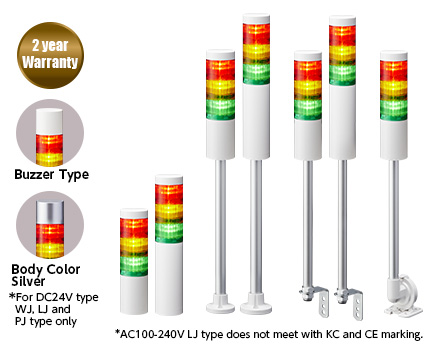

  • ไฟสัญญาณเตือนแบบชั้น LED ขนาด 60 มม. LR6
  • เลนส์ที่ได้รับการออกแบบใหม่ และโครงสร้างโมดูลที่ได้รับปรับปรุงให้ดีขึ้น ให้แสงที่สว่างสม่ำเสมอ ทำให้สามารถมองเห็นได้ไกลยิ่งขึ้น
  • โมดูลเสียแบบหุ้มปิดสนิทที่ผ่านกระบวนการวิศวกรรมใหม่ คงการป้องกันน้ำและฝุ่นได้อย่างสำคัญ พร้อมกับการผลิตเสียงดังรอบทิศทาง (LR5 DC12V: 80dB LR4 & LR5: 85dB, LR6: 88dB, LR7: 90dB ที่ระยะ 1 ม.)
  • การออกแบบ “บิดล็อก” แบบแยกส่วน ทำให้ปรับแต่งและกำหนดค่าหน่วย LED และโมดูลเสียงในภาคสนามได้อย่างง่ายดาย
  • ปัจจัยรูปแบบที่เรียบกระชับและโครงสร้างตัวเครื่องที่ทนทาน ให้สมรรถนะการทำงานในสภาพแวดล้อมที่ท้าทาย ด้วยมาตรฐานการป้องกัน IP65
  • โมดูล LED แบบหลายสี มีพร้อมให้เลือกใช้งาน (7 สี) ในเครื่องเดียว: แดง เหลืองอำพัน เขียว น้ำเงิน น้ำเงินอ่อน ม่วง และขาว หมายเลขชิ้นส่วน: LR6-E-MZ
  • สี่ตัวเลือกการติดตั้ง: โดยตรง, เสาด้วยตัวยึด L, เสาด้วยตัวยึดแบบกลม และเสาด้วยตัวยึดแบบพับได้ (สีขาวนวลเท่านั้น)
  • มาพร้อมกับตัวเชื่อมต่อ M12, ตัวเลือกการติดตั้งแบบ NPT ขนาด ½” หรือรูทะลุผ่านขนาด 30 มม. (ประเภท LR6-WC)
  • มีให้เลือกใช้งานในแบบ DC24V และ AC100-240V (สีขาวนวลเท่านั้น)
  • มีให้เลือกใช้งานในแบบตัวเครื่องสีขาวนวลและสีเงิน
  • มีให้เลือกใช้งานในแบบเลนส์ใส (สั่งซื้อพิเศษ)

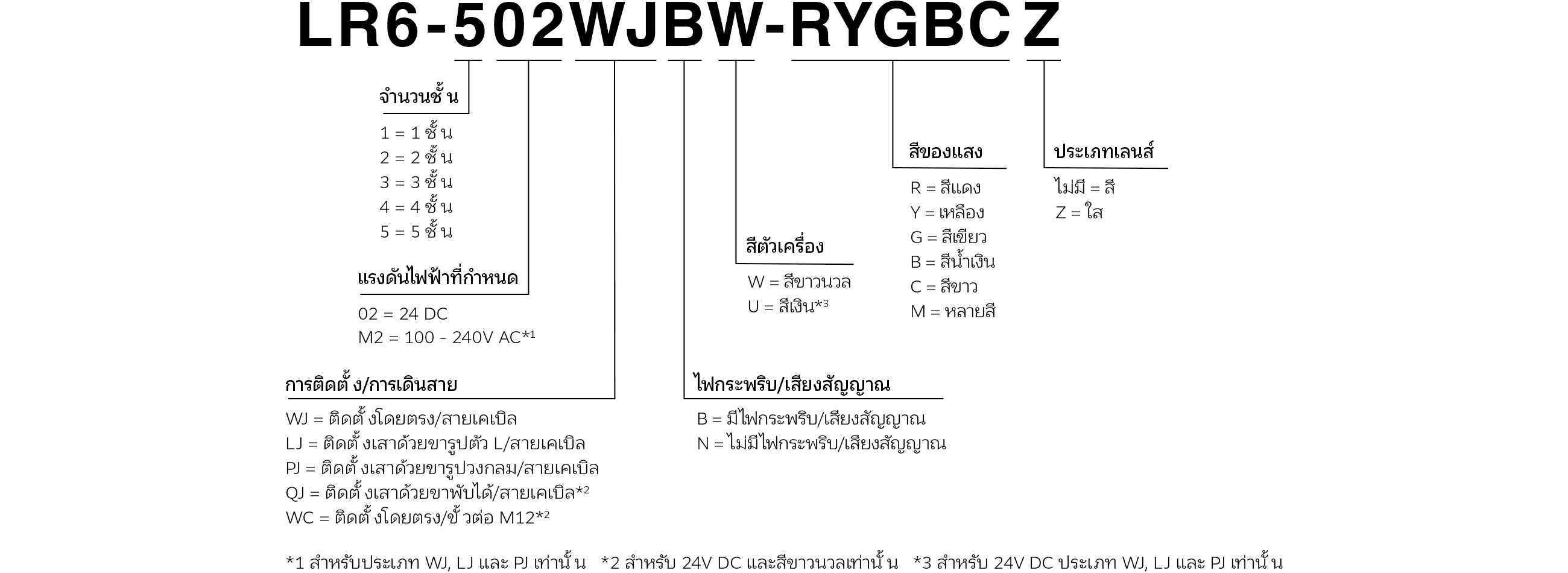

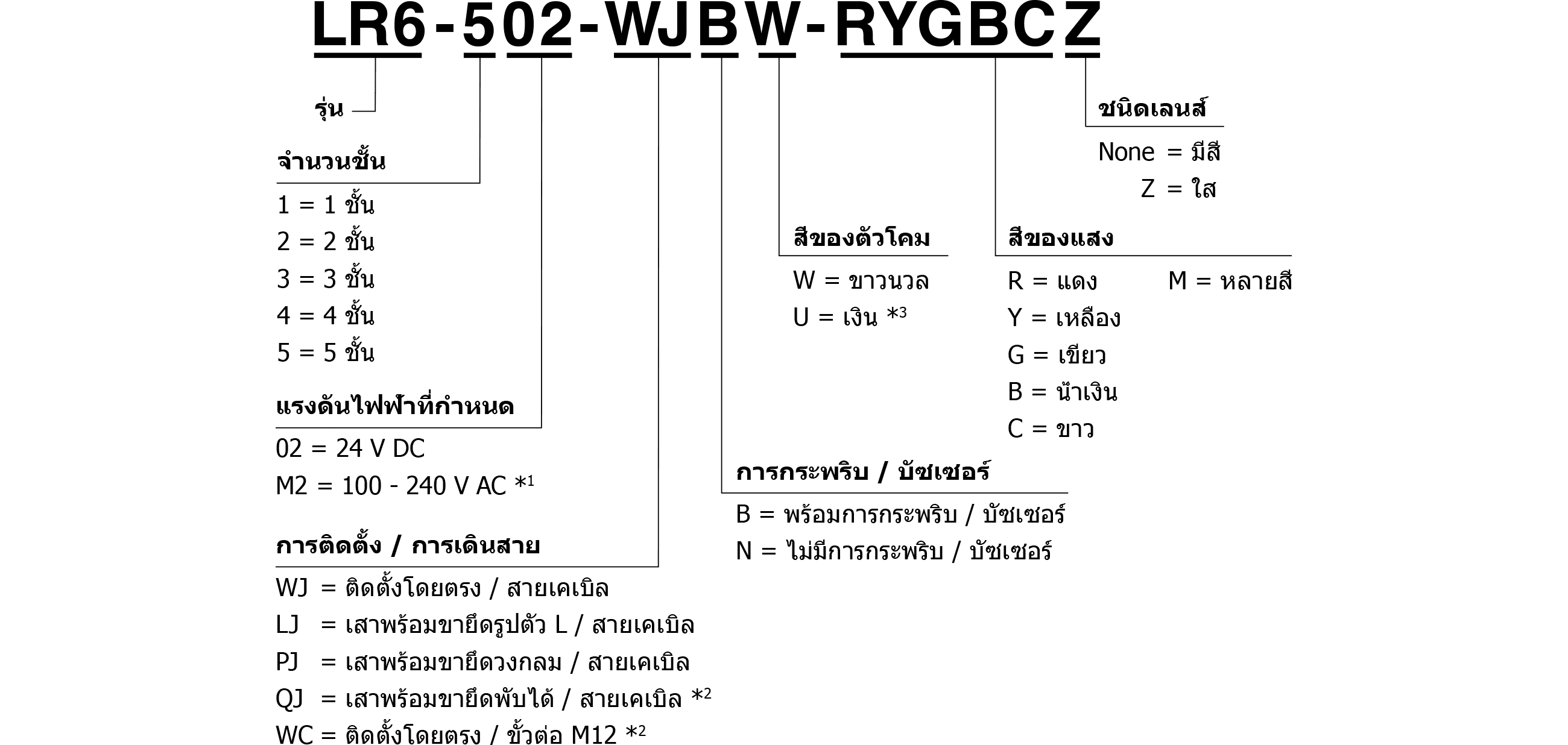

Model Code



ข้อมูลจำเพาะ

อุณหภูมิแวดล้อมใช้งาน -20℃ ถึง +50℃
ช่วงความชื้นใช้งาน 90% RH หรือน้อยกว่า, ไม่มีการควบแน่น
ช่วงอุณหภูมิในการเก็บรักษา -30℃ ถึง +60℃
ช่วยความชื้นในการเก็บรักษา 90% RH หรือน้อยกว่า, ไม่มีการควบแน่น
สถานที่ติดตั้ง ใช้ภายในอาคาร
ทิศทางการติดตั้ง ตำแหน่งตั้งขึ้น
มาตรฐานการป้องกัน*1 IP65(IEC 60529) / NEMA TYPE 4X, 13
สภาพแวดล้อม ตำแหน่งตั้งขึ้น
ความต้านทานของฉนวน มากกว่า 1MΩ ที่แรงดันไฟ DC 500V ระหว่างลีดไฟเข้าและโครงตัวเครื่อง
ทนแรงดันไฟ AC 500V เป็นเวลา 1 นาที ระหว่างขั้วปลายสายไฟและโครงตัวเครื่องโดยฉนวนไม่ขาด (M2: AC1500V เป็นเวลา 1 นาที)
อัตราการกระพริบ 60 ±2 ครั้งต่อนาที
ระดับเสียง ประเภท LR6 88dB
การลดเสียง*2 ลด -10dB สัมบูรณ์
สภาพแวดล้อม เสียงออดเบอร์ 4 (แบบสวีป) จากทุกทิศทางที่ระยะ 1 ม.
เสียงออด 4 รูปแบบ*2เบอร์ 1เสียงเป็นช่วงๆ เร็ว เบอร์ 2เสียงต่อเนื่อง เบอร์ 3สูงต่ำเร็ว เบอร์ 4เสียงสวีป
เอาต์พุตทรานซิสเตอร์ NPN / PNP (AC100 - 240V เป็น NPN เท่านั้น)
มาตรฐานความสอดคล้อง ●UL 508, CSA-C22.2 No.14
●FCC ส่วนที่ 15 ส่วนย่อย B คลาส A
●ระเบียบ RoHS (EN IEC 63000)
●ระเบียบ EMC (EN 61000-6-4, EN 61000-6-2)
●KC (KN 61000-6-4, KN 61000-6-2)*3
●ระเบียบว่าด้วยแรงดันไฟต่ำ (IEC/EN 60947-5-1, EN62471)*4

*1: ประเภท LJ คือ IP54   *2: ขึ้นอยู่กับการตั้งค่าดิฟสวิตช์   *3: ยกเว้นประเภท KT และ M2 LJ   *4: ประเภท M2 เท่านั้น (ยกเว้นประเภท LJ)



ข้อมูลจำเพาะหน่วย LED

สี แดง เหลืองอำพัน เขียว น้ำเงิน ขาว
การใช้กระแสไฟ / กำลังไฟ ประเภท 0.04A/1W
สูงสุด 0.045A/1.3W



ข้อมูลจำเพาะหน่วยออด

การใช้กระแสไฟ / กำลังไฟ ประเภท 0.04A/1W
สูงสุด 0.3A/1.3W
