MP-C
Slim -style Signal Tower

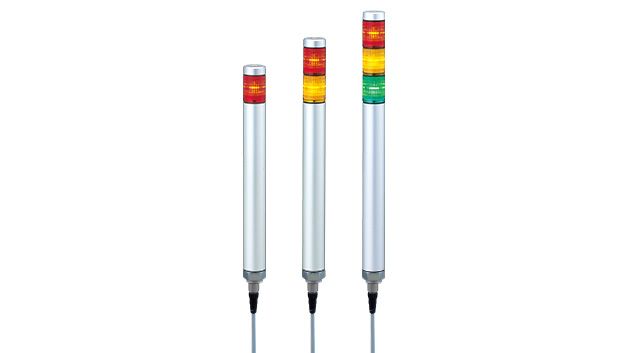

Slim LED tower with silver-colored body and a compact design at 30mm (1-1/4-inch) diameter, Body Length 220mm

Slim -style Signal Tower
Slim -style Signal Tower
  • รายละเอียดสินค้า
  • คำถามที่พบบ่อย
  • ขอแคตตาล็อกสินค้า
  • ติดต่อเรา
  • อุปกรณ์

คุณลักษณะของผลิตภัณฑ์

• Includes an M-12 Quick Connector.
• PATLITE's exclusive hybrid prism-cut lens to enhance visibility from any direction and distance.
• Double Insulation for enhanced durability and safety in the work environment.
•Direct mount installation with just a single hole.
• Interchangeable LED modules needing no re-wiring, even after installation.
• Main Body made of heat resistant ABS resin for superior impact resistance.
• Lens made with light translucent AS resin for superior weather resistance.
• Available colors are in Red, Amber and Green.

คุณลักษณะของรุ่น

DIMENSIONS - 30mm diameter
OPERATING VOLTAGES - DC 24V (Non-polar)
FUNCTIONS - Continuous Lighting Only
- Dry contact closure such as switches or relay contacts
- Open-collector transistor (NPN or PNP) for DC24V
- Direct voltage control
MOUNTING - Direct mount only: includes M22 mounting nut and sealing gasket
BODY STYLE - M-12 Quick Connector (Cable sold separate)
- Pre-assembled, pre-wired
- Modules interchangeable and stackable after purchase
BODY COLOR - Body: Silver
STACKABLE TIERS - From 1 to 3 modules can be stacked
MODULE COLORS - Red
- Amber
- Green
CONFORMITY STANDARDS - CE Marking
- UL Component Recognition (US)
- c-UL Component Recognition (Canada)
- RoHS Compliant
PROTECTION RATINGS - IP-65
